Cable Tray
The unique, tight return edge of Hanley Solutions cable tray eliminates cable snagging and adds strength. The product incorporates a distinctive slot pattern which in return Hanley Solutions cable tray provides installers with total flexibility for the positioning of nuts and bolts, cable ties and allancillary items. The system is designed to compliment our other products offering flexibility in all installations.
Available in three profiles, from light duty through to heavy duty, each system is supported by a comprehensive range of fittings that incorporate integral couplers where suitable. Couplers are required for all cable tray types and we offer a choice of wrap over and internal for straight lengths on medium duty and heavy duty tray.
FINISHES – From Stock: GA Hot dip galvanised after manufacture to BS EN ISO 1461 PG Pre-galvanised steel to BS EN 10327 Additional finishes to special order: SS Stainless steel 316 – EC Epoxy Powder coated – Technical Information
Light duty Cable Trays
25mm deep by 3m long Standard widths:
50, 75, 100, 150, 225 and 300
Standard Depth 25mm
All Standard Cable trays require couplers to fix. Accessories include integral couplers.
Standard finishes (PG/HG) Other finishes (SS/EC)

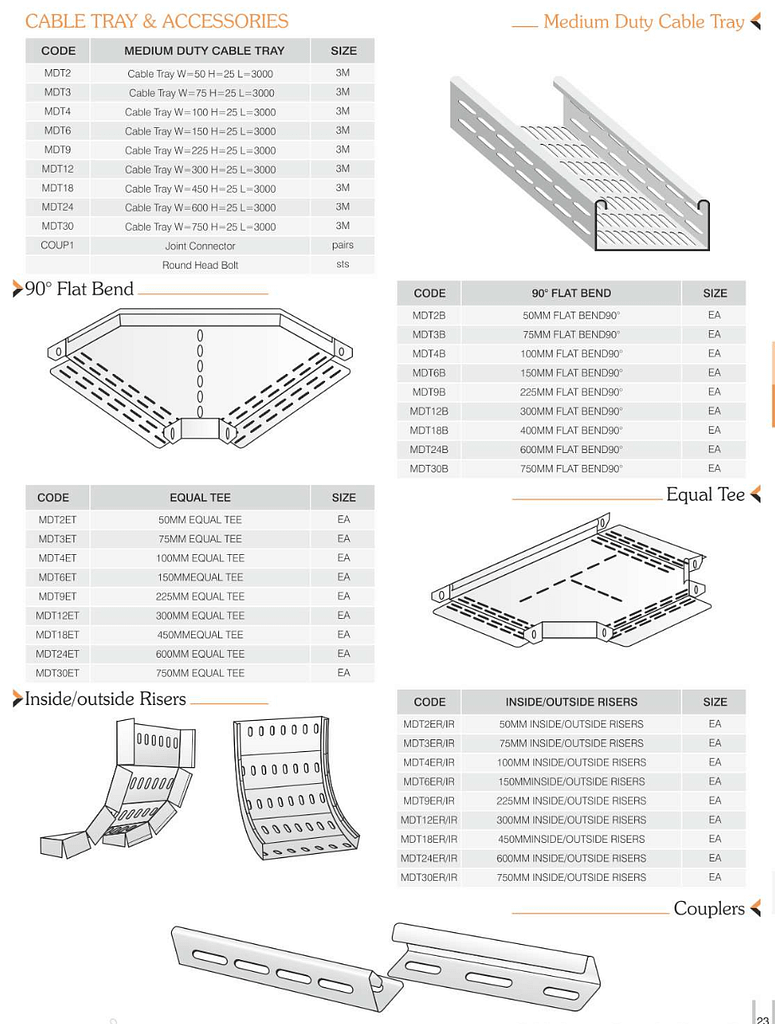

Medium duty Cable Trays
25mm deep by 3m long Standard widths :
50, 75, 100, 150, 225,300, 450 and 600
Other widths upon request
Standard Depth 25mm
Al Medium Duty Cable trays require couplers to fix. Accessories include integral couplers.
Standard finishes (PG/HG) Other finishes (SS/EC)
Heavy duty Cable Trays
50mm deep by 3m long
Standard widths:
50, 75, 100, 150, 225,300,450 and 600 Other widths upon request
Standard Depth 25mm
Al Standard Cable trays require couplers to fix. Accessories include integral couplers
Standard finishes (PG/HG) Other finishes (SS/EC)
